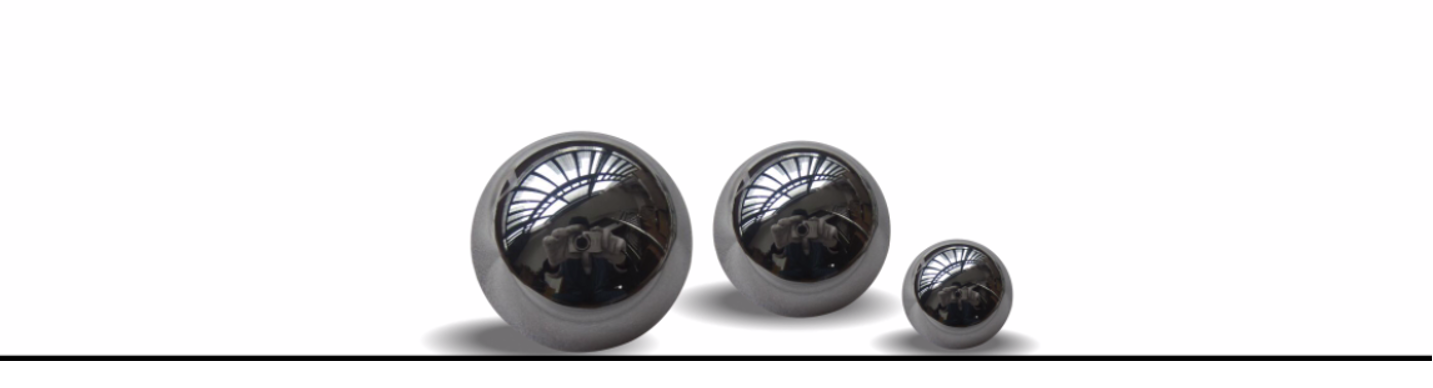

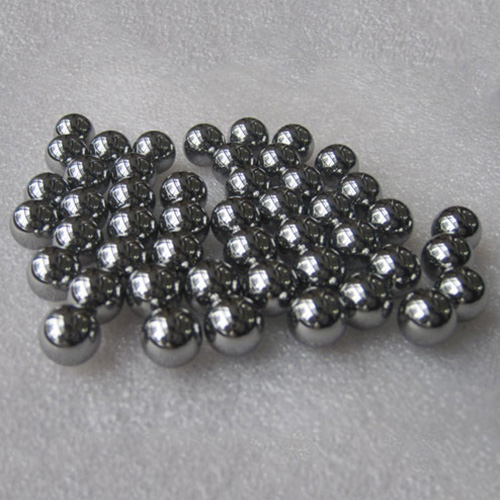

Tungsten Carbide Ball

Tungsten Carbide Ball also called Cemented Carbide Ball or Tungsten Carbide Sphere, it made of WC and binder phase Co ,they are sintered into blanks after pressing.sintered blank often have band like satellite, we will make precision machining for high ground as per customer’s different demand. In addition , we use complete virgin raw material with our creative production technology lead to high performance tungsten carbide balls.

Tungsten carbide ball process
Pulverizing as formula→ mixing → satin extrude → granulating → pressing → molding → vacuum sintering → rough grinding → fine grinding → clean → polish as per user’s demand → inspection → packing and warehousing

Tungsten carbide ball’s common grades:
grades：YG6,YG8,YG6X,YG13,YN6,YN9,YN12,YT5 and YT15.

Tungsten carbide ball’s precision:

Tungsten carbide ball’s variety of sizes:

Tungsten carbide ball state condition we can offer --sintered tungsten carbide ball with satellite/belt
--rough grinding tungsten carbide ball ,without satellite/belt
--grinding tungsten carbide ball
--high precision tungsten carbide ball
--fine grinding tungsten carbide ball and polish
--tungsten carbide ball with threading

CASE:ONE TYPE OF OUR CONVENTIONAL TUNGSTEN CARBIDE BALL -- YG 6

The Features of Tungsten Carbide Balls

Tungsten carbide balls with high hardness, wear resistance, rusty free and anti bending features, which are available to replace of steel balls in any working condition.Usually, they are produced with grade YG6 with hardness as HRA91.0 and density at 14.9g/cm3

*Content, Mechanical and Physical Performance of Tungsten Carbide Ball with Grade YG6 WC: 94%
Co: 6%
Density: 14.9g / cm3
Hardness: HRA91.0
Ultimate Compressive Strength: 4600 ~ 5800mpa
Young’s Modulus: 650Gpa
Specific Heat: 225 J / kg – K
Coefficient of Linear Thermal Expansion: 5,2 10 ^ – 6 / градус Цельсия
Thermal Conductivity: 83,0 W / (m. K)
Electric Resistivity: 180 Омега * m * 10 ^ – 9
Specification:diameter from 0.3mm--100mm

Application of tungsten carbide ball

The tungsten carbide balls are widely used in different areas, such as precision bearings,instruments,meters,pend production, spraying machines, water pumps, machinery accessories, sealing valves, brake pumps,oil deposits, hydrochloric acid laboratory, hardness testers,fishings,weighting blocks,ornaments,and precision machining etc top industries.

Tungsten Carbide Ball Categories

The tungsten carbide balls are mainly composited with micron class carbide article powders such as WC, TiC with high hardness, and refractory performances, and binders phase like Co, Ni or Mo,by means of sintering in vacuum or hydrogen reduction furnace. Now the common grades to produce tungsten carbide ball are YG, YN, YT and YW etc.

We have diversified diameters of tungsten sphere mould for variety of sizes of tungsten carbide ball,so fast delivery is available.according to vacuum furnace integrated and isostatic pressing, tungsten carbide ball’s performance have been largely strengthened.our tungsten carbide ball have excellent quality ,100% non-porous. For the sake of assuring purchaser use our tungsten beads satisfactory, we are willing to provide samples for your testing. If any interest ,please feel free to contact us for get a quote!

Additional Tungsten Threading Ball Be Available. To Meet Different Customers’ Requirement With Threading , Variety of Tungsten Sphere With Threading By Customization, Contact Us For Details.

We deliver certified and tested tungsten carbide balls to businesses

Our item is made of one of the hardest materials on the planet, intended to be areas of strength for inconceivably enduring. These round balls are ideally suited for circumstances where outrageous solidness is required, and they can oppose wearing out, even in extreme circumstances.

What makes them exceptional is their capacity to remain intense when presented to high strain and intensity. Our products are additionally impervious to consumption, meaning they won't effortlessly rust or separate over the long run. This makes them ideal for use in conditions that are harsh or requesting.

These little, round pieces are utilized in many devices and hardware. Whether they're being utilized to make something work without a hitch or handle substantial errands, they assist things with performing better. In addition, the sturdiness of tungsten carbide ball implies its last longer than different materials.

Even though they are sturdy, items are likewise made with accuracy. This guarantees they fit completely in the gear they're intended for, giving improved results like clockwork. Regardless of the project, they assist with working on the quality and dependability of the apparatuses or machines that utilization them.

For the individuals who need a reliable arrangement, our item offers the ideal harmony between strength and accuracy, giving enduring execution that can be depended on.
