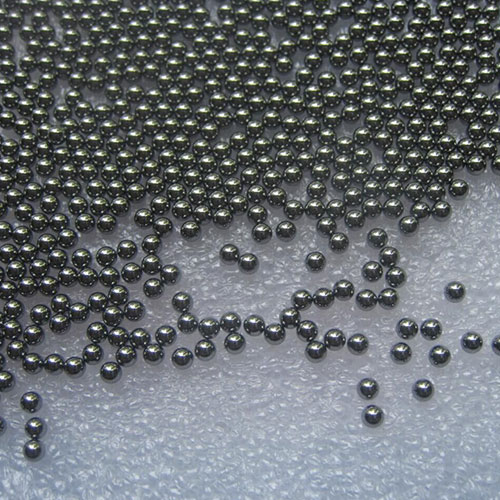

<>Tungsten Shot Product Description
Regular shot size:2.0mm,2.2mm,2.5mm,2.75mm,3.0mm,3.3mm
Density:18.0-18.5g/cc
Composition:W-Ni-Fe ,W content 90-97%
Surface state : high grinding surface , with satellite
Tolerance:accurate tolerance with +/-0.02mm.
Tungsten shot is matured product in our company. It is completely round shape, with or without strict tolerance both available. They can used for hunting as gunshot or other aspects.
| Commodity | Size(mm) | Density(G/CC) | Surface |
| TSS #10 | 1.78 | 18 | Polish |
| TSS #9.5 | 1.9 | 18 | Polish |
| TSS #9 | 2.0 | 18 | Polish |
| TSS #8.5 | 2.15 | 18 | Polish |
| TSS #8 | 2.25 | 18 | Polish |
| TSS #7.5 | 2.4 | 18 | Polish |
| TSS #7 | 2.5 | 18 | Polish |
| TSS #6 | 2.75 | 18 | Polish |
| TSS #5 | 3.05 | 18 | Polish |
| TSS #4.5 | 3.18 | 18 | Polish |
| TSS #4 | 3.3 | 18 | Polish |
| TSS #3 | 3.5 | 18 | Polish |
| TSS #2 | 3.8 | 18 | Polish |
| TSS #1 | 4.1 | 18 | Polish |
| TSS BB | 4.5 | 18 | Polish |
| TSS BBB | 4.8 | 18 | Polish |
| TSS T | 5.08 | 18 | Polish |
| TSS Buck #4 | 6.0 | 18 | Polish |
| TSS Buck #3 | 6.35 | 18 | Polish |
| TSS Buck #2 | 6.86 | 18 | Polish |
| TSS Buck #1 | 7.62 | 18 | Polish |
Tungsten Shot Is Non-Toxic
Hunters and other interest groups have a number of concerns with respect to the change toward non-toxic shot. In order to avoid lead shot’s toxicity and comply with state hunting regulations, but still have high performance characteristics, tungsten shot is becoming more and more welcomed after non-toxic shot regulations by hunters and environmentalists alike. Tungsten shot can outperform virtually any other shot on the market due to it being very dense and retaining more of the energy.tungsten shot is called environmental protection shot as shot made up of tungsten(W) is much more environment friendly than Lead (Pb),so it has a gorgeous name as green shot.
A Note About Lead Shot & Lead Poisoning
Lead poisoning from exposure to lead can occur by contaminated air, water, dust, food, or even consumer products. Children are at greater risk as they are likely to put objects in their mouths and absorb a large amounts of lead if swallowed. Adults risk exposure to lead in many different work environments. Lead is a common environmental pollutant and lead shot is banned nowadays for many applications, primarily for the benefit of the birds and other predators, rather than humans.
Tungsten Shot Versus Others
|
Specification
|
Lead
|
Steel
|
Bismuth
|
Tungsten
|
Tin
|
Zinc
|
W/Ni/Fe
|
|---|---|---|---|---|---|---|---|
|
Toxic to waterbirds
|
yes
|
no
|
no
|
no
|
no
|
yes
|
no
|
|
Specific gravity(g/m3)
|
11.4
|
7.8
|
9.6
|
10.5
|
7.3
|
7.3
|
12
|
|
Hardness
|
soft
|
hard
|
soft
|
soft
|
soft
|
hard
|
hard
|
|
Stability
|
stable
|
stable
|
000
|
stable
|
stable
|
stable
|
stable
|
Tungsten shot is used as the shot of shotgun, hunting sphere. A shotgun is firearm that is usually designed to be fired from the shoulder. the shot pellets from a shotgun spread upon leaving the barrel,and the power of the burning charge is divided among the tungsten pellets, which means that the energy of any one ball of shot is fairly low. in a hunting industry, this makes shotguns useful primarily for hunting birds and other small games.
Tungsten Shot Sizes
|
Size (mm)
|
Density (g/cm3)
|
Weight (g)
|
|---|---|---|
|
2.0
|
18
|
0.075
|
|
2.2
|
18
|
0.101
|
|
2.25
|
18
|
0.107
|
|
2.4
|
18
|
0.130
|
|
2.5
|
18
|
0.147
|
|
2.75
|
18
|
0.196
|
|
3.0
|
18
|
0.254
|
|
3.3
|
18
|
0.338
|
|
3.5
|
18
|
0.404
|
|
3.75
|
18
|
0.497
|
|
4.0
|
18
|
0.603
|

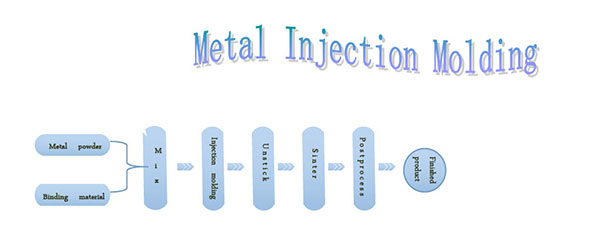

Tungsten Shot Formation
Our tungsten shot is formed by MIM technology which bears special advantages of a more homogeneous micro-structure, evenly distributed, higher density and uniform size. Finely polished surfaces of our tungsten reduces wear on the barrel. Once you have used our tungsten shot, you will never use any other shot again!
MIM(Metal injection molding) is a high-tech near net shaping process to mass-produce small metal parts with complex shape, high precision and good performance. It is a metalworking process by which finely-powdered metal is mixed with a certain amount of binder materials to comprise a feed-stock capable of being handled by equipment through a process known as injection mold forming.
MIM widely caters to variety of industries such as automotive, commercial, aerospace, cellular telephones, dental instruments, electronic heat sinks, hermetic packages, industrial tools, fluid spray systems, hard disk drives, pharmaceutical devices, surgical instruments and sporting equipment.
MIM Technology Advantages
- More homogeneous micro-structure, higher density
- Achieve net shape features such as internal and external threads, profiled holes and finely detailed surface textures, knurling, engraving and markings.
- Consistent quality and high production efficiency, raw materials can be reused in mass production, costs can be largely reduced.
– MIM is already widely used in many of our tungsten alloy products
There are many flexible dosing for tungsten-nickel-iron matrix at us to meet different density and hardness required by customers, to assure hits on vitals provided, and gain optimal penetration for the shotgun pellet.
Finding High Density Tungsten Shot for Your Match
National Guidelines for Lead-Free Ammunition
http://www.leadfreehunting.com/state-regulations/
Other information:
Why use tungsten super shot -TSSTungsten super shot will fly farther, hit harder and penetrate deeper.that means more birds or waterfowls,farther out,with fewer cripples.another unique characteristic is that tungsten super shot is non-toxic.it is friendly to environment,so it is sale for hunters or other interest groups to handle and work with.
●High density
●Easy to handle
●Safe to use
●High melting point
●Small volume
●Excellent hardness
●Super wearing resistance
●High ultimate tensile strength
●High ductility
●High temperature resistance
●Low vapor pressure
General performance
|
Item |
Density g/cc |
Yield strength Mpa |
Elongation % |
Compacting force j/cd |
Hardness HB |
|
90WNiFe/Cu |
17.15±0.15 |
600-650 |
20-30 |
≥130 |
245-304 |
|
90WNiFe/Cu forged |
17.15±0.15 |
900-1100 |
10-20 |
≥50 |
333-428 |
|
91WNiFe/Cu |
17.25±0.15 |
600-650 |
20-30 |
≥100 |
245-304 |
|
91WNiFe/Cu forged |
17.25±0.15 |
900-1100 |
10-20 |
≥50 |
333-428 |
|
91.5WNiFe/Cu |
17.4±0.15 |
600-650 |
20-30 |
≥80 |
245-304 |
|
91.5WNiFe/Cu forged |
17.4±0.15 |
900-1100 |
10-20 |
≥50 |
333-428 |
|
92.5WNiFe/Cu |
17.6±0.15 |
600-650 |
20-30 |
≥50 |
251-287 |
|
92.5WNiFe/Cu forged |
17.6±0.15 |
900-1100 |
5-15 |
≥20 |
333-428 |
|
93WNiFe/Cu |
17.7±0.15 |
600-670 |
15-25 |
≥50 |
260-287 |
|
93WNiFe/Cu forged |
17.7±0.15 |
900-1100 |
5-15 |
≥20 |
333-428 |
|
95WNiFe/Cu |
18.0±0.15 |
600-670 |
15-25 |
≥30 |
251-323 |
|
95WNiFe/Cu forged |
18.0±0.15 |
850-1050 |
8-15 |
|
333-428 |
|
97WNiFe/Cu |
18.5±0.15 |
620-670 |
4-10 |
≥10 |
283-323 |
|
97WNiFe/Cu forged |
18.5±0.15 |
750-1050 |
3-8 |
|
333-428 |
