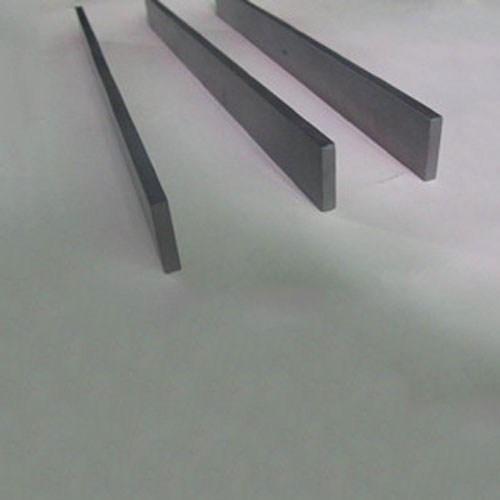

Tungsten Carbide Bar

We can produce tungsten carbide bar according to customer’s demand. The max length is 1000mm , precision machining is available as per customers requirements.

Tungsten Carbide Bar - Applications

Tungsten Carbide Bar / strip is widely used for general wood cutters,as core parts of VSI crusher,or used in mining,sand,cement,metallurgy and hydropower engineering industries.

Tungsten Carbide Bar Properties

GRADE	ISO CODE	CO. CONTENT %	DENSITY g/cm3	HARDNESS HRA	TRS N/mm2
K10T	K05-K10	4.5-6.0	14.95-15.05	92.7	1800
YG8	K30	8	14.80	89.5	2200
YG6	K20	6	14.95	90.5	1900
YG6X	K10	6	14.95	91.5	1800
YL10.2	K30	10	14.50	91.8	2400
YG13X	K30-K40	13	14.30	89.5	2600
YG15	K40	15	14.00	87.5	2800

Tungsten Carbide Bar Measurements

Tungsten Carbide Bar Item Number Breakdown

Tungsten Carbide Bar Size (mm)

Type	Item No.	Length	Width	Thickness	Flatness Tolerance
140×W×T	CB1400615	140	6	1.5	<0.35
140×W×T	CB1400815	140	8	1.5	<0.35
140×W×T	CB1401015	140	10	1.5	<0.35
140×W×T	CB1401215	140	12	1.5	<0.35
140×W×T	CB1401415	140	14	1.5	<0.35
140×W×T	CB1401615	140	16	1.5	<0.35
140×W×T	CB1401815	140	18	1.5	<0.35
140×W×T	CB1402015	140	20	1.5	<0.35
140×W×T	CB1402215	140	22	1.5	<0.35
140×W×T	CB1402515	140	25	1.5	<0.35
140×W×T	CB1400620	140	6	2.0	<0.35
140×W×T	CB1400820	140	8	2.0	<0.35
140×W×T	CB1401020	140	10	2.0	<0.35
140×W×T	CB1401220	140	12	2.0	<0.35
140×W×T	CB1401420	140	14	2.0	<0.35
140×W×T	CB1401620	140	16	2.0	<0.35
140×W×T	CB1401820	140	18	2.0	<0.35
140×W×T	CB1402020	140	20	2.0	<0.35
140×W×T	CB1402220	140	22	2.0	<0.35
140×W×T	CB1402520	140	25	2.0	<0.35
140×W×T	CB1400630	140	6	3.0	<0.35
140×W×T	CB1400830	140	8	3.0	<0.35
140×W×T	CB1401030	140	10	3.0	<0.35
140×W×T	CB1401230	140	12	3.0	<0.35
140×W×T	CB1401430	140	14	3.0	<0.35
140×W×T	CB1401630	140	16	3.0	<0.35
140×W×T	CB1401830	140	18	3.0	<0.35
140×W×T	CB1402030	140	20	3.0	<0.35
140×W×T	CB1402230	140	22	3.0	<0.35
140×W×T	CB1402530	140	25	3.0	<0.35
140×W×T	CB1400640	140	6	4.0	<0.35
140×W×T	CB1400840	140	8	4.0	<0.35
140×W×T	CB1401040	140	10	4.0	<0.35
140×W×T	CB1401240	140	12	4.0	<0.35
140×W×T	CB1401440	140	14	4.0	<0.35
140×W×T	CB1401640	140	16	4.0	<0.35
140×W×T	CB1401840	140	18	4.0	<0.35
140×W×T	CB1402040	140	20	4.0	<0.35
140×W×T	CB1402240	140	22	4.0	<0.35
140×W×T	CB1402540	140	25	4.0	<0.35
140×W×T	CB1400650	140	6	5.0	<0.35
140×W×T	CB1400850	140	8	5.0	<0.35
140×W×T	CB1401050	140	10	5.0	<0.35
140×W×T	CB1401250	140	12	5.0	<0.35
140×W×T	CB1401450	140	14	5.0	<0.35
140×W×T	CB1401650	140	16	5.0	<0.35
140×W×T	CB1401850	140	18	5.0	<0.35
140×W×T	CB1402050	140	20	5.0	<0.35
140×W×T	CB1402250	140	22	5.0	<0.35
140×W×T	CB1402550	140	25	5.0	<0.35
140×W×T	CB1400660	140	6	6.0	<0.35
140×W×T	CB1400860	140	8	6.0	<0.35
140×W×T	CB1401060	140	10	6.0	<0.35
140×W×T	CB1401260	140	12	6.0	<0.35
140×W×T	CB1401460	140	14	6.0	<0.35
140×W×T	CB1401660	140	16	6.0	<0.35
140×W×T	CB1401860	140	18	6.0	<0.35
140×W×T	CB1402060	140	20	6.0	<0.35
140×W×T	CB1402260	140	22	6.0	<0.35
140×W×T	CB1402560	140	25	6.0	<0.35
140×W×T	CBXXXXXXX	...	...	...	...

Type	Item No.	Length	Width	Thickness	Flatness Tolerance
165×W×T	CB1650615	165	6	1.5	<0.35
165×W×T	CB1651215	165	12	1.5	<0.35
165×W×T	CB1651415	165	14	1.5	<0.35
165×W×T	CB1651615	165	16	1.5	<0.35
165×W×T	CB1651815	165	18	1.5	<0.35
165×W×T	CB1652015	165	20	1.5	<0.35
165×W×T	CB1652215	165	22	1.5	<0.35
165×W×T	CB1652515	165	25	1.5	<0.35
165×W×T	CB1650620	165	6	2.0	<0.35
165×W×T	CB1650820	165	8	2.0	<0.35
165×W×T	CB1651020	165	10	2.0	<0.35
165×W×T	CB1651220	165	12	2.0	<0.35
165×W×T	CB1651420	165	14	2.0	<0.35
165×W×T	CB1651820	165	18	2.0	<0.35
165×W×T	CB1652020	165	20	2.0	<0.35
165×W×T	CB1652220	165	22	2.0	<0.35
165×W×T	CB1652520	165	25	2.0	<0.35
165×W×T	CB1650630	165	6	3.0	<0.35
165×W×T	CB1650830	165	8	3.0	<0.35
165×W×T	CB1651030	165	10	3.0	<0.35
165×W×T	CB1651230	165	12	3.0	<0.35
165×W×T	CB1651430	165	14	3.0	<0.35
165×W×T	CB1651630	165	16	3.0	<0.35
165×W×T	CB1651830	165	18	3.0	<0.35
165×W×T	CB1652030	165	20	3.0	<0.35
165×W×T	CB1652230	165	22	3.0	<0.35
165×W×T	CB1652530	165	25	3.0	<0.35
165×W×T	CB1650640	165	6	4.0	<0.35
165×W×T	CB1650840	165	8	4.0	<0.35
165×W×T	CB1651040	165	10	4.0	<0.35
165×W×T	CB1651240	165	12	4.0	<0.35
165×W×T	CB1651440	165	14	4.0	<0.35
165×W×T	CB1651540	165	16	4.0	<0.35
165×W×T	CB1651840	165	18	4.0	<0.35
165×W×T	CB1652040	165	20	4.0	<0.35
165×W×T	CB1652240	165	22	4.0	<0.35
165×W×T	CB1652540	165	25	4.0	<0.35
165×W×T	CB1650650	165	6	5.0	<0.35
165×W×T	CB1650850	165	8	5.0	<0.35
165×W×T	CB1651050	165	10	5.0	<0.35
165×W×T	CB1651250	165	12	5.0	<0.35
165×W×T	CB1651450	165	14	5.0	<0.35
165×W×T	CB1651650	165	16	5.0	<0.35
165×W×T	CB1651850	165	18	5.0	<0.35
165×W×T	CB1652050	165	20	5.0	<0.35
165×W×T	CB1652250	165	22	5.0	<0.35
165×W×T	CB1652550	165	25	5.0	<0.35
165×W×T	CB1650660	165	6	6.0	<0.35
165×W×T	CB1650860	165	8	6.0	<0.35
165×W×T	CB1651060	165	10	6.0	<0.35
165×W×T	CB1651260	165	12	6.0	<0.35
165×W×T	CB1650140	165	14	6.0	<0.35
165×W×T	CB1651660	165	16	6.0	<0.35
165×W×T	CB1651860	165	18	6.0	<0.35
165×W×T	CB1652060	165	20	6.0	<0.35
165×W×T	CB1652260	165	22	6.0	<0.35
165×W×T	CB1652560	165	25	6.0	<0.35
165×W×T	CBXXXXXXX	...	...	...	...

Type	Item No.	Length	Width	Thickness	Flatness Tolerance
230×W×T	CB2300820	230	8	2.0	<0.35
230×W×T	CB2301020	230	10	2.0	<0.35
230×W×T	CB2301220	230	12	2.0	<0.35
230×W×T	CB2301420	230	14	2.0	<0.35
230×W×T	CB2301620	230	16	2.0	<0.35
230×W×T	CB2301820	230	18	2.0	<0.35
230×W×T	CB2302020	230	20	2.0	<0.35
230×W×T	CB2302220	230	22	2.0	<0.35
230×W×T	CB2302520	230	25	2.0	<0.35
230×W×T	CB2303020	230	30	2.0	<0.35
230×W×T	CB2300825	230	8	2.5	<0.35
230×W×T	CB2301025	230	10	2.5	<0.35
230×W×T	CB2301225	230	12	2.5	<0.35
230×W×T	CB2301425	230	14	2.5	<0.35
230×W×T	CB2301625	230	16	2.5	<0.35
230×W×T	CB2301825	230	18	2.5	<0.35
230×W×T	CB2302025	230	20	2.5	<0.35
230×W×T	CB2302225	230	22	2.5	<0.35
230×W×T	CB2302525	230	25	2.5	<0.35
230×W×T	CB2303025	230	30	2.5	<0.35
230×W×T	CB2300830	230	8	3.0	<0.35
230×W×T	CB2301030	230	10	3.0	<0.35
230×W×T	CB2301230	230	12	3.0	<0.35
230×W×T	CB2301430	230	14	3.0	<0.35
230×W×T	CB2301630	230	16	3.0	<0.35
230×W×T	CB2301830	230	18	3.0	<0.35
230×W×T	CB2302030	230	20	3.0	<0.35
230×W×T	CB2302230	230	22	3.0	<0.35
230×W×T	CB2302530	230	25	3.0	<0.35
230×W×T	CB2303030	230	30	3.0	<0.35
230×W×T	CB2300840	230	8	4.0	<0.35
230×W×T	CB2301040	230	10	4.0	<0.35
230×W×T	CB2301240	230	12	4.0	<0.35
230×W×T	CB2301440	230	14	4.0	<0.35
230×W×T	CB2301640	230	16	4.0	<0.35
230×W×T	CB2301840	230	18	4.0	<0.35
230×W×T	CB2302040	230	20	4.0	<0.35
230×W×T	CB2302240	230	22	4.0	<0.35
230×W×T	CB2302540	230	25	4.0	<0.35
230×W×T	CB2303040	230	30	4.0	<0.35
230×W×T	CB2300850	230	8	5.0	<0.35
230×W×T	CB2301050	230	10	5.0	<0.35
230×W×T	CB2301250	230	12	5.0	<0.35
230×W×T	CB2301450	230	14	5.0	<0.35
230×W×T	CB2301650	230	16	5.0	<0.35
230×W×T	CB2301850	230	18	5.0	<0.35

Type	Item No.	Length	Width	Thickness	Flatness Tolerance
320×W×T	CB3201020	320	10	2.0	<0.35
320×W×T	CB3201220	320	12	2.0	<0.35
320×W×T	CB3201420	320	14	2.0	<0.35
320×W×T	CB3201620	320	16	2.0	<0.35
320×W×T	CB3201820	320	18	2.0	<0.35
320×W×T	CB3202020	320	20	2.0	<0.35
320×W×T	CB3202220	320	22	2.0	<0.35
320×W×T	CB3202520	320	25	2.0	<0.35
320×W×T	CB3203020	320	30	2.0	<0.35
320×W×T	CB3201025	320	10	2.5	<0.35
320×W×T	CB3201225	320	12	2.5	<0.35
320×W×T	CB3201425	320	14	2.5	<0.35
320×W×T	CB3201625	320	16	2.5	<0.35
320×W×T	CB3201825	320	18	2.5	<0.35
320×W×T	CB3202025	320	20	2.5	<0.35
320×W×T	CB3202225	320	22	2.5	<0.35
320×W×T	CB3202525	320	25	2.5	<0.35
320×W×T	CB3203025	320	30	2.5	<0.35
320×W×T	CB3201030	320	10	3.0	<0.35
320×W×T	CB3201230	320	12	3.0	<0.35
320×W×T	CB3201430	320	14	3.0	<0.35
320×W×T	CB3201630	320	16	3.0	<0.35
320×W×T	CB3201830	320	18	3.0	<0.35
320×W×T	CB3202030	320	20	3.0	<0.35
320×W×T	CB3202230	320	22	3.0	<0.35
320×W×T	CB3202530	320	25	3.0	<0.35
320×W×T	CB3203030	320	30	3.0	<0.35
320×W×T	CB3201040	320	10	4.0	<0.35
320×W×T	CB3201240	320	12	4.0	<0.35
320×W×T	CB3201440	320	14	4.0	<0.35
320×W×T	CB3201640	320	16	4.0	<0.35
320×W×T	CB3201840	320	18	4.0	<0.35
320×W×T	CB3202040	320	20	4.0	<0.35
320×W×T	CB3202240	320	22	4.0	<0.35
320×W×T	CB3202540	320	25	4.0	<0.35
320×W×T	CB3203040	320	30	4.0	<0.35
320×W×T	CB3201050	320	10	5.0	<0.35
320×W×T	CB3201250	320	12	5.0	<0.35
320×W×T	CB3201450	320	14	5.0	<0.35
320×W×T	CB3201650	320	16	5.0	<0.35
320×W×T	CB3201850	320	18	5.0	<0.35
320×W×T	CB3202050	320	20	5.0	<0.35
320×W×T	CB3202250	320	22	5.0	<0.35
320×W×T	CB3202550	320	25	5.0	<0.35
320×W×T	CB3203050	320	30	5.0	<0.35
320×W×T	CB3201060	320	10	6.0	<0.35
320×W×T	CB3201260	320	12	6.0	<0.35
320×W×T	CB3201460	320	14	6.0	<0.35
320×W×T	CB3201660	320	16	6.0	<0.35
320×W×T	CB3201860	320	18	6.0	<0.35
320×W×T	CB3202060	320	20	6.0	<0.35
