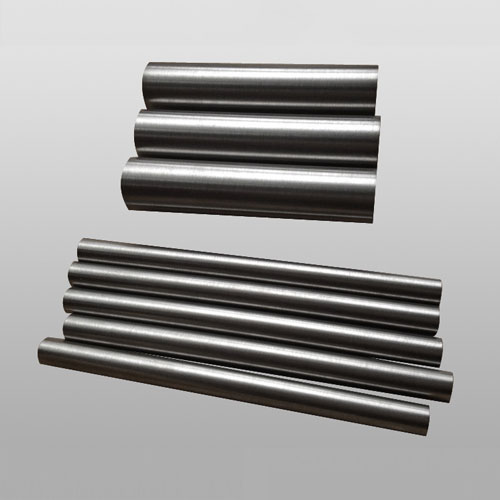

Tungsten Rod
99.95% pure Tungsten Rod
Appearance: silver gray metal luster
Density: not less than 19.2g/cm3
Supply state: annealing or processing
Tungsten Rod Applications
Tungsten Rod is suitable for producing ion implantation parts
Tungsten Rod is suitable for producing electric light source parts and electric vacuum components
Tungsten Rod is suitable for producing heating elements and refractory parts in high temperature furnaces
Tungsten Rod is also used as electrode in the field of rare earth metal industry

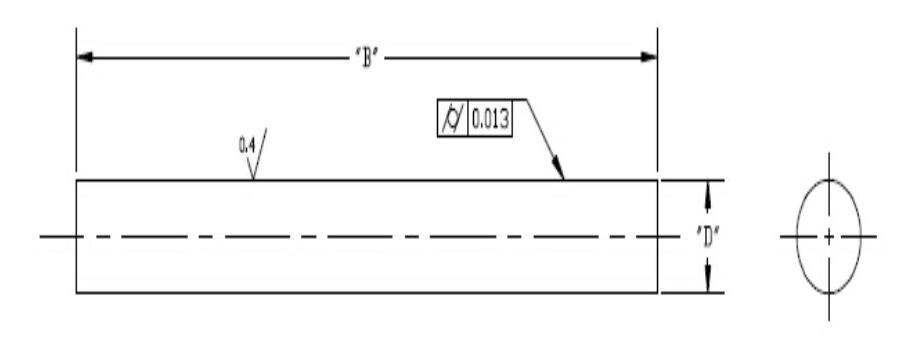

Tungsten Rod Type and Size
| Tungsten Rod Content | Type | Diameter(mm) | Dia. Tolerance(mm) | Length(mm) | L tolerance(mm) | Liner Rate |
|---|---|---|---|---|---|---|
| 99.95% | Sintering Rod | Φ40-100 | ± 3 | <500 | ± 5 | ± 5% |
| 99.95% | Forged Rod | Φ20-80 | ± 2 | <800 | ± 5 | ± 2% |
| 99.95% | Ground Rod | Φ2-60 | ± 0.1 | <650 | ± 1 | ± 0.5% |
